SterileGuardUV™ Germicidal UVC System

Lifetime ballast warranty

3-year lamp life




SterileGuardUV™ Germicidal UVC System is a whole-house air purification solution installed directly into the central heating and cooling system ductwork or plenum. It duplicates the same energy and power of the Sun's UV Rays that controls outdoor contaminants, to inactivate the airborne germs and viruses in your indoor environment, while killing odor causing bacteria.


The high-intensity Dual-Radiant™ UVC Lamp disinfects the air by killing or inactivating airborne pathogens including bacteria, viruses, and other biological growth. According to the EPA, the combined use of filtration and germicidal UVC light is an effective means of preventing the distribution of airborne viruses in occupied spaces.


With ultraviolet light, micro-watts translate to effectiveness. SterilGuardUV™ sixteen-inch (16”) UVC lamps produce a very high output of 180 microwatts @ 1 meter which is 330% higher than standard UVC lamps on the market.

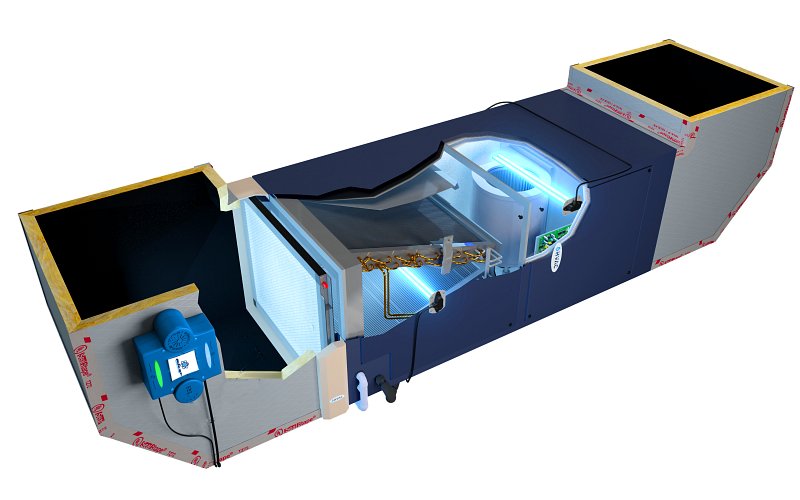

A computer generated image of a ventilation system

(This image depicts the different locations the SterilGuardUV™ System can be installed depending on the application.)

Features and Benefits


Germicidal UVC

  • Controls allergens that cause allergic and asthmatic episodes
  • Controls or destroys airborne organisms such as mold spores, bacteria, and viruses
  • Controls odor causing biological growth within your HVAC system


HEAT SINK HOUSING DESIGN

  • Dissipates heat from electronic components for improved reliability
  • Allows operation at higher temperatures
  • Extends ballast life


LONG LASTING LAMPS

  • The UVC lamp controls bacteria, viruses, and biological growth
  • Three-year lamps mean replacement only every three years


AUTO-SENSING MULTI-VOLTAGE

  • Auto-sensing ballast automatically compensates 120-277VAC 50/60Hz
  • Internal circuit breaker protects against power surges


EASY MAINTENANCE

  • 27,000-hour lamps require replacing only once every three years
  • LED power and lamp monitors let you know the system is working properly


ECONOMICAL OPERATION

  • Keeps your HVAC system clean and running at peak efficiency
  • Stops you from overpaying the utility company
  • Low static pressure drop lets blower run efficiently


OPTIONAL ACCESSORIES

  • Offset Duct Board Adapter Plate
  • Lamp Reflector Kits


FAST INSTALLATION

  • Installs without costly ductwork modifications
  • Suitable for up to a 5-ton AHU


WARRANTY

  • Limited Lifetime warranty on all electronic components
  • UVC lamps are warranted against defects for three years
